I. Product introduction

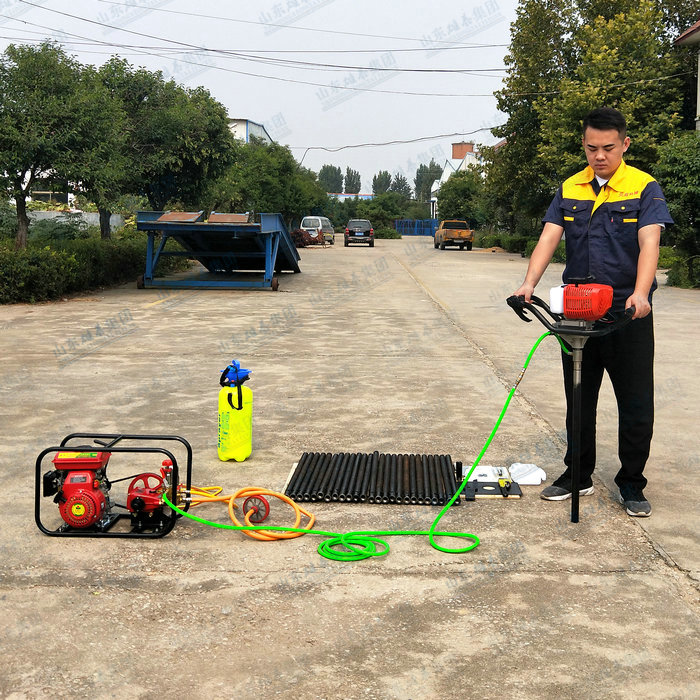

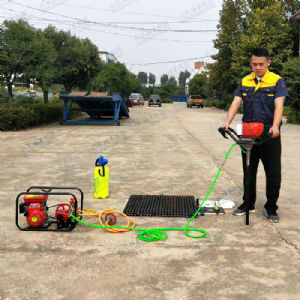

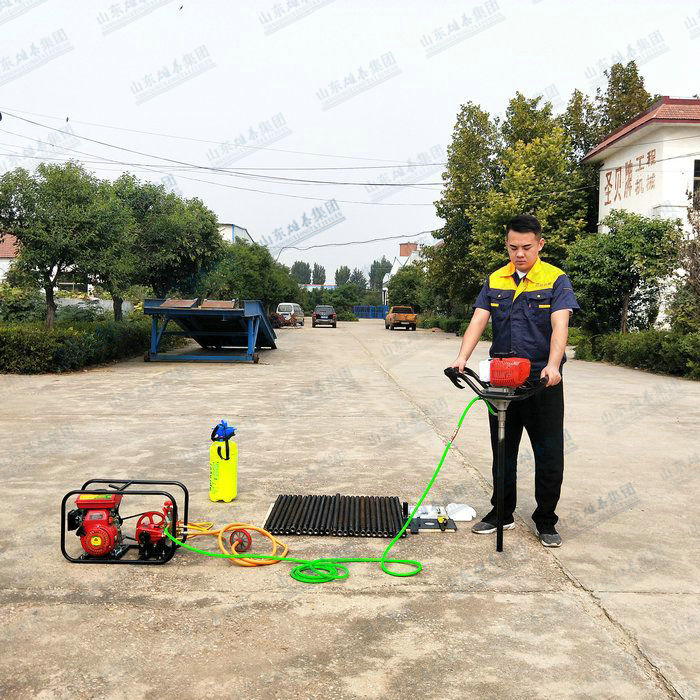

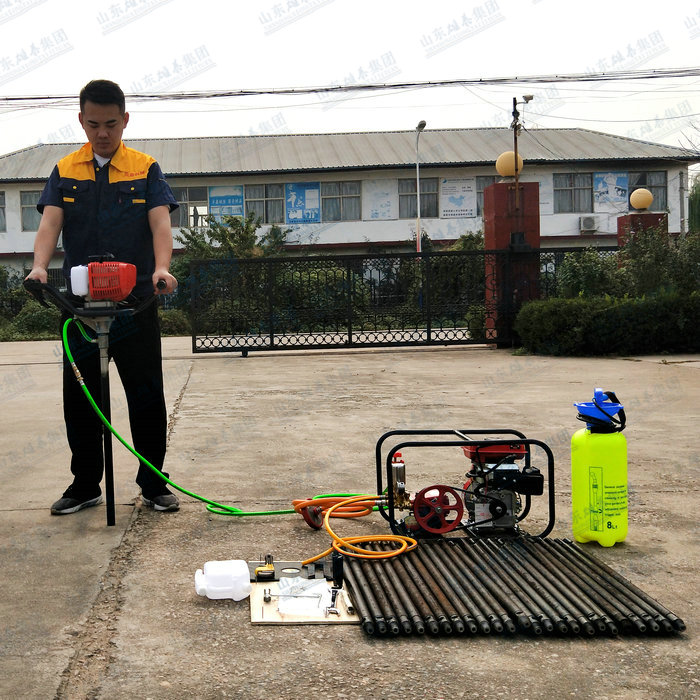

The BZ-30B one-man backpack core drill produced by Shandong Xiongtai Machinery is the most portable shallow core sampling drill in China. Maximum drilling depth up to 30 meters. The revolutionary of the tiny portable core drilling machine is designed for mineral investigation, field survey, geological study and prospectors and tailor-made, through our decades of experience, and in dozens of countries and regions in the world of the field validation, constantly improve and upgrade the quality of our products and believe that this tool will be helpful for your work.
Ii. Product features
1. Easy to carry. After the whole rig and related accessories are put into the backpack, the total weight of a standard equipped portable rig and its accessories shall not exceed 20kg.

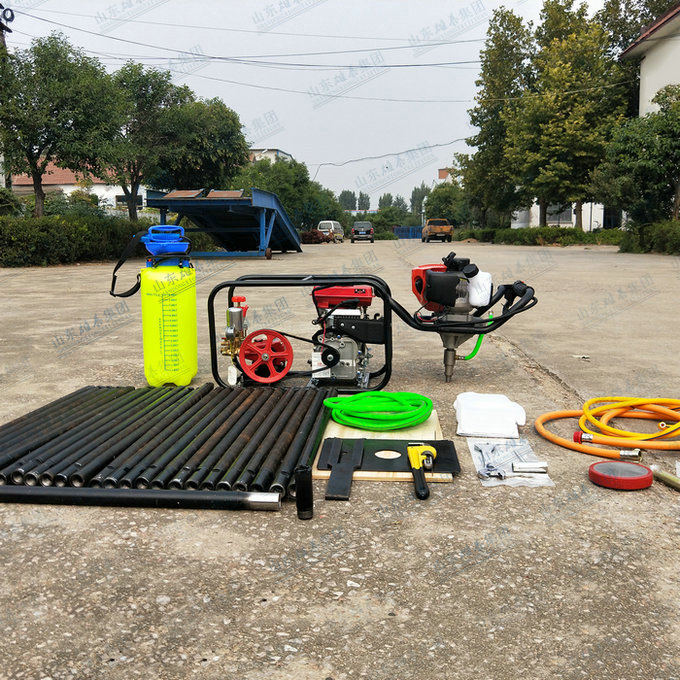

2. Fully equipped, all the tools for drilling and collecting a variety of rock samples can be carried in a backpack, easily affordable for an average adult male or female. In addition, there is plenty of room in the backpack for spare fuel, drinking water and personal belongings.
3. Flexible operation. The whole device can be connected or extended simply by rotating and pushing without additional tools. Coupled with the core feeder, the core and core fragments can be quickly and thoroughly removed.
4. Fast drilling, our drilling machine drilling through all kinds of rock layer efficiency is unique, the special formula of diamond drill cut sharp, save time and effort, and ensure enough life.
Iii. Product parameters
| BZ-30B單人背包鉆機 | ||
| 鉆孔直徑 | 32-108 | |
| 鉆孔深度 | 30 | |
| 鉆桿直徑 | 26-102 | |
| 汽油機 | 排量 | 45 |
| 馬力（HP） | 7.33 | |
| 鉆機重量（KG） | 20 | |
| BZ-30B背包鉆機配置清單 | |||||
| 序號 | 產品名稱 | 產品類型 | 規格 | 數量 | 備注 |
| BZ-30B | 1套 | 全套設備 | |||
| 1 | 動力系統 | 混合油動力 | TU43 | 1 | 日本原裝進口 |
| 2 | 鉆桿 | 32MM*70CM | 28 | 共20米滲碳鋼材質 | |
| 3 | 取芯管 | 32MM*70CM | 2 | 特殊合金材質 | |
| 4 | 轉換器 | 32MM*X | 2 | 國產加強型材質 | |
| 5 | 鉆頭 | 金剛石 | 32MM | 2 | 國產加強型材質 |
| 6 | 鉆頭 | 復合片 | 32MM | 2 | 國產加強型材質 |
| 7 | 鉆頭 | 合金 | 32MM | 2 | 國產加強型材質 |
| 8 | 壓力壺 | 1 | 潛孔用于壓力供水 | ||
| 9 | 配比壺 | 1 | 混合液配比用 | ||
| 10 | 泥漿泵 | 高壓泵 | 4.2 | 1 | 配有全套連接裝置 |
| 11 | 工具 | 1套 | 使用及日常維修所有工具 | ||
| 12 | 易損件 | 1套 | 動力，供水等易損件 | ||
Shandong XIONGTAI Machinery Group Co., Ltd
Consultation hotline：400-0537-369
